• Pin Ø: 22mm,
• Hole Ø: 22mm,
• Hole centres: 54mm,
• Section: 25x63mm,
• Ball Size: 50mm,
• Overall height: 535mm.

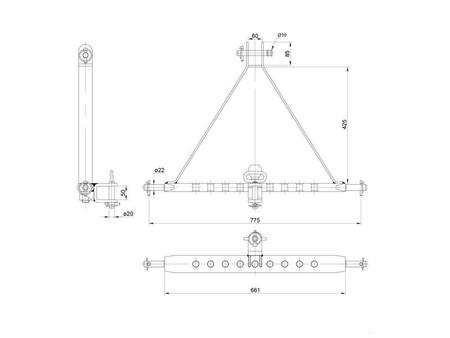

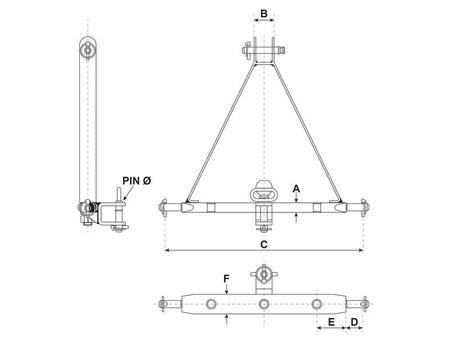

• A (mm) 25
• B (mm)63
• Ball Size (ins)2
• Ball Size (mm)50
• C (mm)775
• Category 1
• D (mm)57
• E (mm)114
• F (mm)54
• G (mm)22
• Hole centres (mm)54

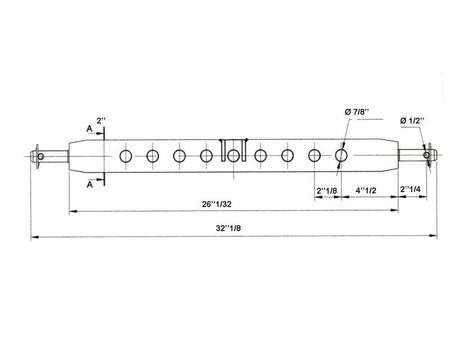

• Hole Centres Ins 2-1/8
• Hole Ø (ins)55/64
• Hole Ø (mm)22
• Linch Pin Ø (mm)10
• Maximum Towing Load 3T
• Number of holes 9
• Overall height (ins) 21-1/16
• Overall height (mm)535
• Overall length (ins)3033/64
• Overall length (mm)775
• Pin Ø (ins)7/8
• Pin Ø (mm)22
• Section (mm)25x63
• Section ins1 x 2-
• Top Pin Diameter mm19
• Top pin Ø ins
• Working length (ins)2-1/4
• Working length (mm)57
