Specifications

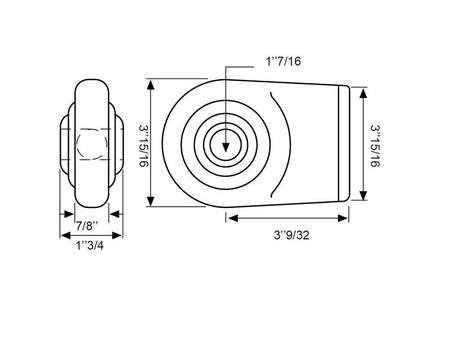

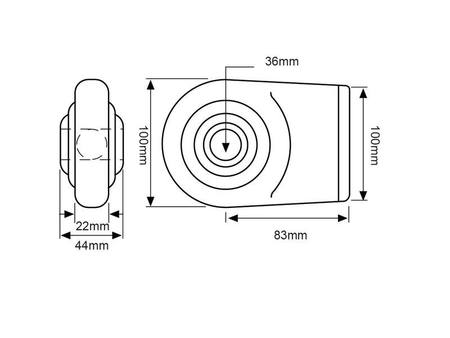

Working length: 83mm, ID: 36mm, Welding Length: 100mm, Ball Width:45mm, Width x Depth: 100 x 22mm (3 15/16 x 7/8')

• Ball Width (ins) 1-25/32
• Ball Width (mm) 45
• Category 3
• Duty Extra Heavy
• E (ins) 1-3/4
• E (mm) 44
• F (ins) 3-15/16
• F (mm) 100
• Inner Ø (ins) 1-7/16
• Inner Ø (mm) 36
• Top Width x Depth 100 x 22mm (3 15/16 x 7/8')
• Welding Length (ins) 3-15/16
• Welding Length (mm) 100
• Working length (ins) 3-9/32
• Working length (mm)3
