Suitable For Make/Model

Case IH / International Harvester
1194
David Brown
1190, 1194, 770, 780, 880, 885

Oem Part Numbers

Belt References
AVX10X1090
Case IH / International Harvester
K912196, 4056/17203
David Brown
K912196
Ford / New Holland
K912196

Specifications

• Belt No.AVX10x1090
• Datum length LD (mm)1077
• Depth (mm)8
• Depth ins5/16
• Effective Length (ins)42
• Effective Length (mm)1077
• Inside length Li (mm)1039
• Inside length Li ins41
• Outside length La (ins)43
• Outside length La (mm)1090
• Pitch Length (Lp) (Lw):1077
• SectionAVX10

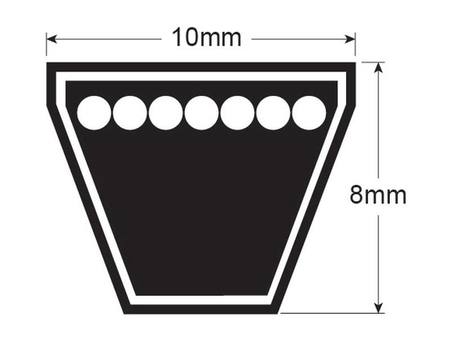

• Top Width x Depth
• 10 x 8mm (3/8'' x 5/16'')

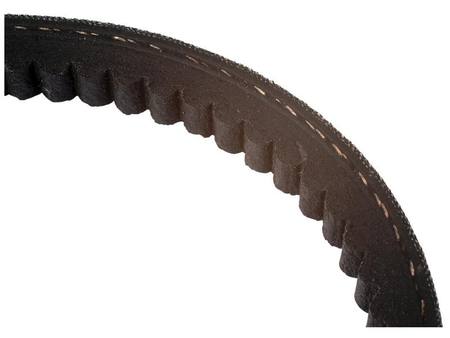

• TypeRaw Edge Moulded Cogged Fan Belt
• Width (ins)3/8
• Width (mm)10
