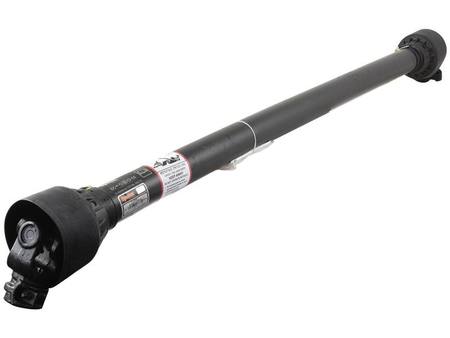

Sparex PTO Shaft - (Lz) Length: 1010mm, 1 3/8'' x 6 Spline Q.R. to 1 3/8'' x 6 Spline Shear Bolt Limiter

• Brand Sparex Clutch Setting Nm 790
• Grease Coupler
• Central Grease Nipple
• HP Rating @ 540RPM 21 HP
• Rating Range @ 540RPM up to 54

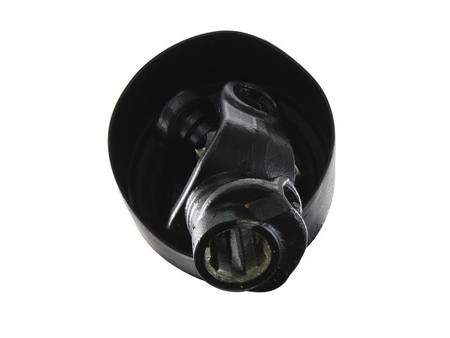

• Implement End 1 3/8'' x 6 Spline Shear Bolt Limiter
• Italian Series AB2/A2
• Kilowatt Power Rating @ 540RPM 15

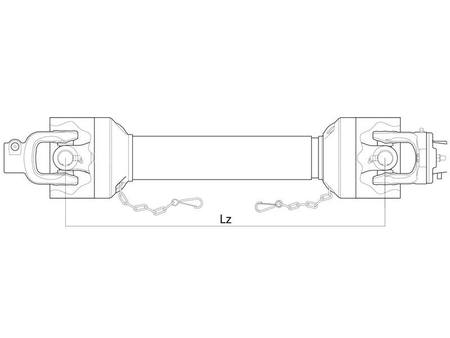

• Lz Length (mm) 1010
• PTO Series AB2/A2
• Related products 163811, 166692, 166693
• Shearbolt Clutch Bolt Ø mm 6 Shearbolt
• Clutch Radius mm 48
• Torque (Nm) 270
• Torque Range (Nm) 210-334Nm
• Total Closed Length (mm) 1206
• Tractor End 1 3/8'' x 6 Spline Q.R.
• Tube Profile Triangle Tube
• Universal Joint Dimensions 23.8 x 61.2mm
