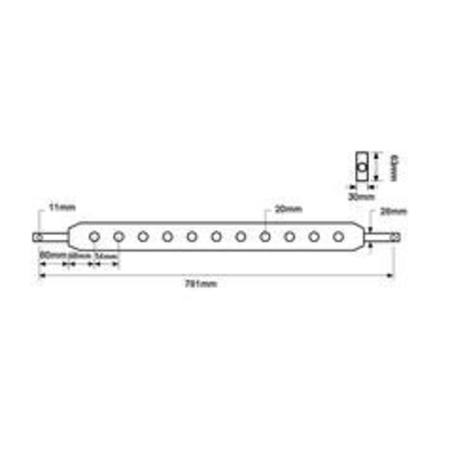

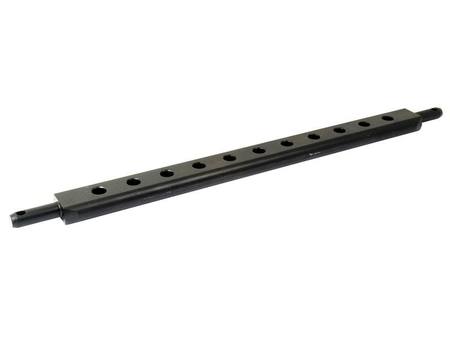

S.126 Drawbar CAT 2 (829032M1) hole 781mm

• Alternative to Brand Sparex
• Category 2
• D (ins) 2-3/8
• D (mm) 60
• E (ins) 2-3/8
• E (mm) 60
• Hole centres (mm) 54
• Hole Centres Ins 2-1/8
• Hole Ø (ins) 25/32
• Hole Ø (mm) 20
• Linch Pin Ø (mm)
• 11 Number of holes
• 11 Overall length (ins) 30-3/4
• Overall length (mm) 781
• Pin Ø (ins) 1-1/8
• Pin Ø (mm) 28
• Section (mm) 30x63
• Section ins 1- x 2-
• Tariff Code 7319909000
• Tensile Strength kgs (cm²) 8000
• Tensile Strength tons (ins²) 50
• Working length (ins) 2-3/8
• Working length (mm) 60
