Suitable For Make/Model

John Deere
2054, 5076E, 5082E, 5083E, 5090E, 5093E, 5425, 5625, 5725, 6010, 6010SE, 6020, 6020SE, 6090MC, 6090RC, 6095MC, 6095RC, 6100MC, 6100RC, 6105M, 6105MC, 6105R, 6105R - NORTH AMERICA EDITION, 6105RC, 6110, 6110L, 6110M, 6110MC, 6110R, 6110R - NORTH AMERICA EDITION, 6110RC, 6110SE, 6115M, 6115MC, 6115R, 6115R - NORTH AMERICA EDITION, 6115RC, 6120, 6120L, 6120M, 6120R, 6120R - NORTH AMERICA EDITION, 6120SE, 6125M, 6125R, 6125R - NORTH AMERICA EDITION, 6130, 6130M, 6130R, 6130R - NORTH AMERICA EDITION, 6135M, 6135R, 6140M, 6140R, 6145M, 6145R, 6150M, 6150R, 6155M, 6155R, 6170M, 6175M, 6195M, 6205, 6210, 6210L, 6210SE, 6215, 6220, 6220L, 6220SE, 6225, 6230, 6230 - NORTH AMERICA EDITION, 6230 PREMIUM, 6230 PREMIUM - NORTH AMERICA EDITION, 6310, 6310L, 6310S, 6310SE, 6320, 6320L, 6320SE, 6325, 6330, 6330 - NORTH AMERICA EDITION, 6330 PREMIUM, 6330 PREMIUM - NORTH AMERICA EDITION, 6405, 6405 - NORTH AMERICA EDITION, 6410, 6410L, 6410S, 6410SE, 6415, 6420, 6420L, 6420S, 6420SE, 6425, 6430, 6430 - NORTH AMERICA EDITION, 6430 PREMIUM, 6430 PREMIUM - NORTH AMERICA EDITION, 6505, 6510, 6510L, 6510S, 6510SE, 6515, 6520, 6520L, 6520SE, 6525, 6530, 6530 PREMIUM, 6534, 6534 PREMIUM, 6605, 6610, 6610SE, 6615, 6615 - NORTH AMERICA EDITION, 6620, 6620SE, 6630, 6630 PREMIUM, 6715, 6715 - NORTH AMERICA EDITION, 6810, 6820, 6830, 6830 PREMIUM, 6910, 6910S, 6920, 6920S, 6930, 6930 PREMIUM, 6R 110, 6R 120, 6R 130, 6R 140, 6R 150, 6R 155, 6R 165, 6R 175, 6R 185, 7130, 7130 - NORTH AMERICA EDITION, 7130 PREMIUM, 7130 PREMIUM - NORTH AMERICA EDITION, 7220, 7230, 7230 - NORTH AMERICA EDITION, 7230 PREMIUM, 7230 PREMIUM - NORTH AMERICA EDITION, 7320, 7330, 7330 PREMIUM

Specifications

  • Min. Length: 394mm
  • Max. Length: 450mm
  • Ball Size (ins)3/4
  • Ball Size (mm)19
  • Ball Width (ins)2-23/64
  • Ball Width (mm)60
  • End Fittings A Ball Ø19mm
  • End Fittings B Fork 24mm
  • Fork Hole Ø (ins) 49/64
  • Fork Hole Ø (mm) 19.5
  • Maximum Length (ins) 17-
  • Maximum Length (mm) 450
  • Minimum Length (ins) 15-
  • Minimum Length (mm)394
  • Thread size M30 x 3.50
  • Thread type Metric
  • Tube Length (mm) 260
  • Width External (mm) 50
  • Width External ins 50
  • Width Internal (mm) 24
  • Width Internal ins 15/16

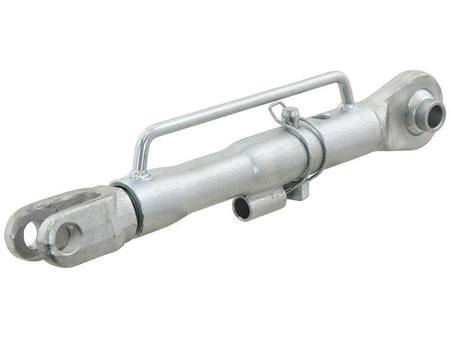

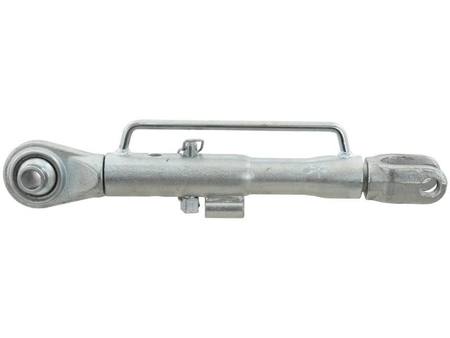

Stabiliser - Ball Ø19mm - Fork 24mm - Min. Length: 394mm - M30 x 3.50

S.75858 - Pack Size: ea

 
