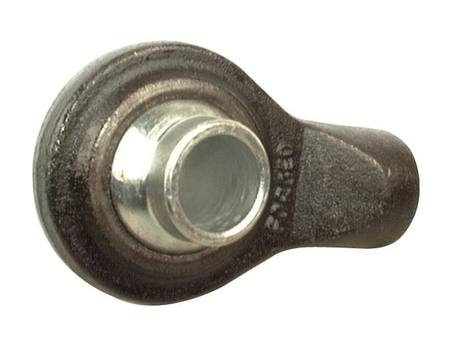

Specifications

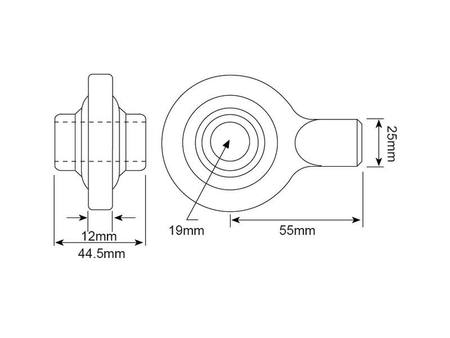

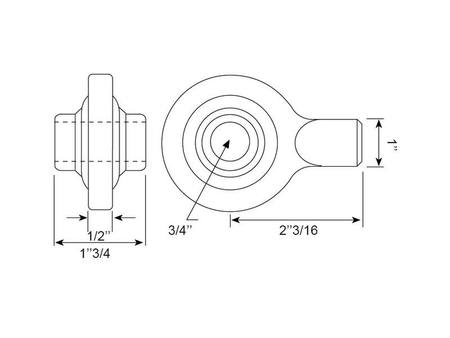

Working length: 55mm, ID: 19mm, Welding Length: 25mm, Ball Width:44mm, Width x Depth: 57 x 12mm (2 1/4 x 1/2')

• Ball Width (ins) 1-3/4
• Ball Width (mm) 44
• Category 1
• Inner Ø (ins) 3/4
• Inner Ø (mm) 19
• Top Width x Depth 57 x 12mm (2 1/4 x 1/2')
• Welding Length (ins) 1
• Welding Length (mm) 25
• Working length (ins) 2-3/16
• Working length (mm) 55
