Specifications

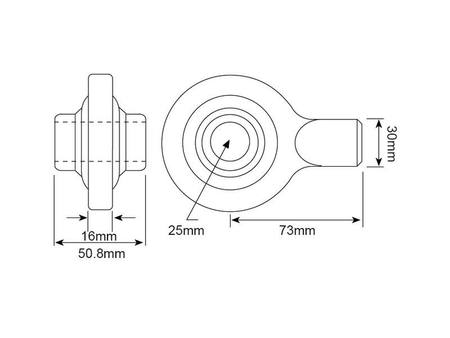

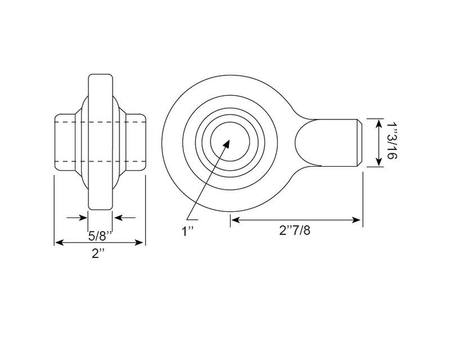

Working length: 73mm, ID: 25.4mm, Welding Length: 30mm, Ball Width:51mm, Width x Depth: 67 x 16mm (2 41/64 x 5/8')

• Ball Width (ins) 2
• Ball Width (mm) 51
• Category 2
• Inner Ø (ins) 1
• Inner Ø (mm) 25.4
• Top Width x Depth 67 x 16mm (2 41/64 x 5/8')
• Welding Length (ins) 1-3/16
• Welding Length (mm) 30
• Working length (ins) 2-7/8
• Working length (mm) 73
